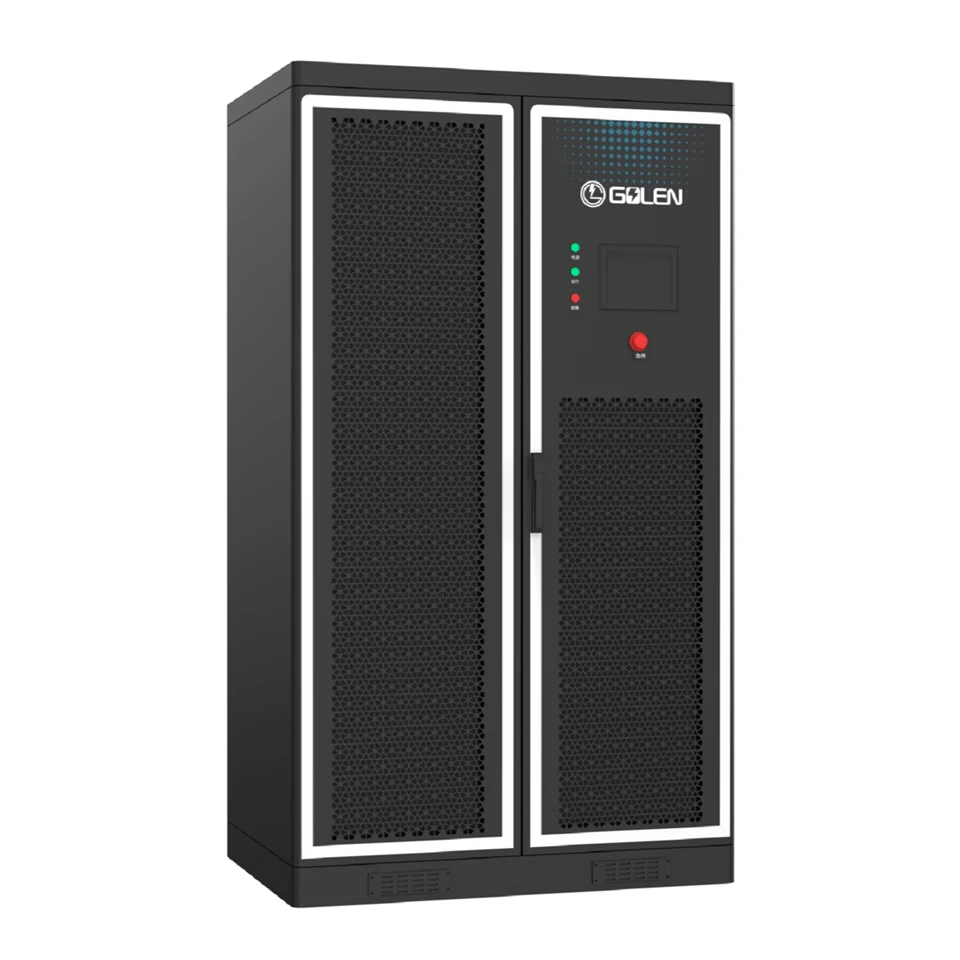

The high - performance DSP and optimized control circuit design contribute to its superior performance. The wide DC input voltage range design allows for compatibility with a variety of high - capacity battery systems, enabling the creation of customized energy storage solutions for large - scale applications.
This model supports grid - connected charging & discharging and off - grid independent inverter functions. The adjustable reactive power and active power provide the flexibility to manage power according to the complex requirements of large - scale operations. Optionally, it can support diesel generator access, enabling seamless transitions between on - grid and off - grid operation. It can cold start with a large load and handle three - phase 100% unbalanced loads, ensuring stable power supply in large - scale electrical setups.
The AC and DC dual - power backup system is a cornerstone of its reliability, ensuring that the control system remains powered at all times, even during the most challenging power outages or grid instabilities. With an exceptional high power density and a maximum efficiency of up to 96%, it maximizes the utilization of electrical energy, making it an ideal choice for large - scale power management.
| Model | LEG-250K-TT-B | LEG-500K-TT-B |
| DC Parameters | ||
| Max.DC Voltage [V] | 880 | |
| DC Voltage Range [V] | 600~880 | |
| AC Parameters (On Grid) | ||
| Rated Output Power [kW] | 250 | 500 |
| Max. Output Power [kVA] | 275 | 550 |
| Max. Output Current [A] | 397 | 793 |
| Rated Grid Voltage [V] | 3W/N/PE,230/400 | |
| Rated Grid Frequency [Hz] | 50/60 | |
| Rated Grid Frequency [Hz] | 47.5~52.5 | |
| Power Factor | 1 (0.9 leading to 0.9 lagging) | |
| THDi | ≤3% (at rated power) | |
| AC Parameters (Off Grid) | ||
| Rated Output Power [kW] | 250 | 500 |
| Max. Output Power [kVA] | 275 | 550 |
| Rated Output Voltage [V] | 400 | |
| Rated Output Frequency [Hz] | 50/60 | |
| THDi | ≤3% (Linear Load @ Rated Power) | |
| Unbalanced Load Capability | 100% | |
| Protections | ||
| DC Overvoltage Protection | Yes | |
| DC Short-circuit Protection | Yes | |
| AC Overvoltage Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Over-temperature Protection | Yes | |
| Efficiency | ||
| Max. Efficiency | 95% | 96% |
| General Parameters | ||
| Isolation Transformer | Yes | |
| Ingress Protection Rating | IP20 | |
| Operating Temperature [°C] | -30~+55 | |
| Relative Humidity | 0~95%,Non-condensing | |
| Cooling Method | Temperature-Controlled Forced Air Cooling | |
| Max. Altitude [m] | 4000(>3000 Derating) | |
| Display | Touch screen | |
| Communication Interface | RS485 / CAN / Ethernet | |
| Communication Protocol | Modbus-RTU / TCP | |
| Weight [kg] | 1600 | 3000 |
| Dimensions (W×D×H) [mm] | 1200×800×2100 | 1600×1040×2200 |
