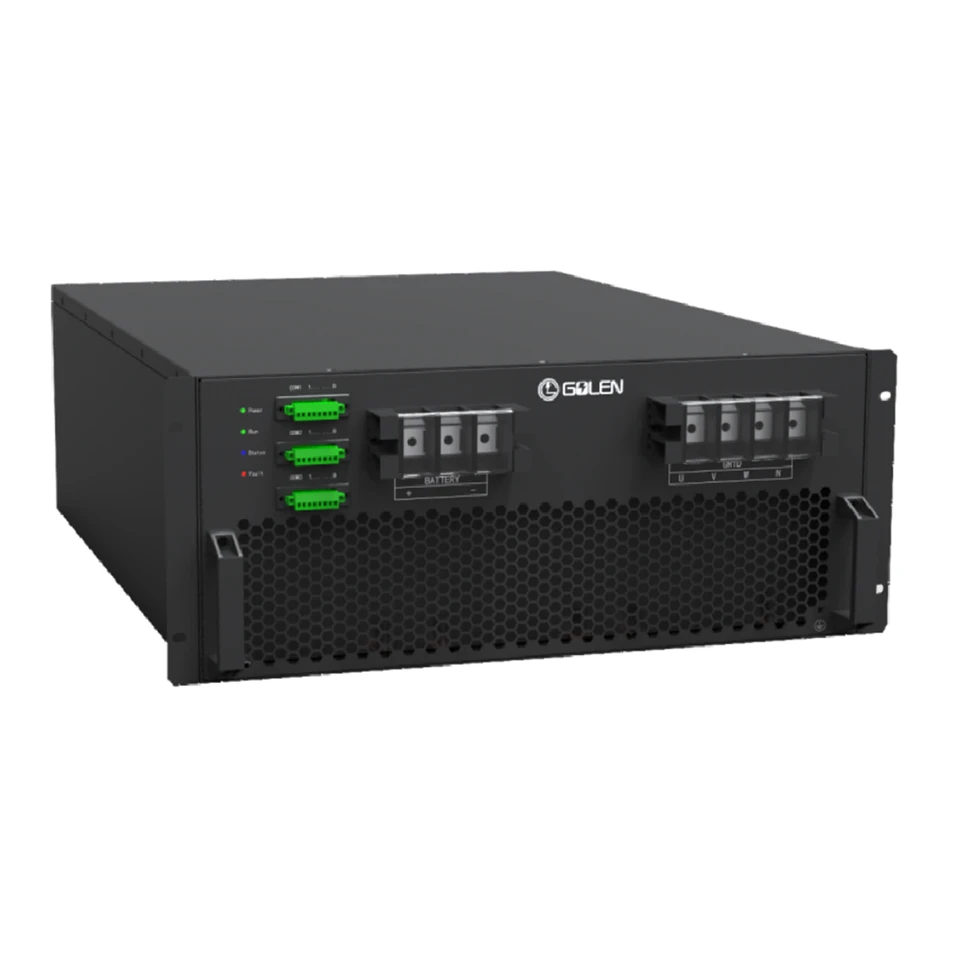

The LEG-50K/60K/80K/100K/110K/120K/125K/130K/135K-TL-P products are three-phase modular power conversion systems with 50/60/80/100/110/120/125/130/135kW rated output power. They are innovative energy storage PCS products that bring a new level of performance and functionality to the market. They are specifically designed to be highly compatible with multiple battery types, providing users with the flexibility to choose the most appropriate energy storage solution for their specific applications. Whether it's for a residential solar power system or a small commercial energy storage project, these PCS products can adapt to different battery chemistries.
The protection functions integrated into the PCS are comprehensive and reliable. They ensure the long-term stability and safety of the PCS, protecting it from various electrical faults and environmental factors. This includes features like island protection, which prevents the PCS from operating independently when the grid is down, and surge protection to safeguard against power spikes.
The modular design supports expansion, allowing users to increase the capacity of their energy storage system as their needs evolve. Optional features like anti-backflow and on-grid/off-grid switching give users more control over their power system. With a three-level topology achieving 98.6% efficiency, it is a highly efficient power solution.
| Model | LEG-50K-TL-P | LEG-60K-TL-P | LEG-80K-TL-P | LEG-100K-TL-P | LEG-110K-TL-P | LEG-120K-TL-P | LEG-125K-TL-P | LEG-130K-TL-P | LEG-135K-TL-P |
| DC Parameters | |||||||||
| Max. DC Voltage [V] | 1000 | ||||||||
| DC Voltage Range [V] | 650~950 | ||||||||
| AC Parameters (On-grid) | |||||||||
| Rated Output Power [kW] | 50 | 60 | 80 | 100 | 110 | 120 | 125 | 130 | 135 |
| Max. Output Power [kVA] | 55 | 66 | 88 | 110 | 121 | 132 | 138 | 143 | 148 |
| Max. Output Current [A] | 79 | 95 | 127 | 159 | 175 | 191 | 198 | 206 | 214 |
| Rated Grid Voltage [V] | 3W/N/PE, 230/400 (±10%) | ||||||||
| Rated Grid Frequency [Hz] | 50 | ||||||||
| Grid Frequency Range [Hz] | 47.5~52.5 | ||||||||
| Power Factor | 1 (0.9 Leading ~ 0.9 Lagging) | ||||||||
| THDi | ≤3% (at Rated Power) | ||||||||
| AC Parameters (Off-grid) | |||||||||
| Rated Output Power [kW] | 50 | 60 | 80 | 100 | 110 | 120 | 125 | 130 | 135 |
| Max. Output Power [kVA] | 55 | 66 | 88 | 110 | 121 | 132 | 138 | 143 | 148 |
| Rated Output Voltage [V] | 400 | ||||||||
| Rated Output Frequency [Hz] | 50 | ||||||||
| Total Voltage Harmonic Distortion | <3% (Linear Load @ Rated Power) | ||||||||
| Unbalanced Load Capability | 1 | ||||||||
| Protection | |||||||||
| DC Overvoltage Protection | Yes | ||||||||
| DC Short Circuit Protection | Yes | ||||||||
| AC Overvoltage Protection | Yes | ||||||||
| Reverse Polarity Protection | Yes | ||||||||
| Module Over-temperature Protection | Yes | ||||||||
| Efficiency | |||||||||
| Max. Efficiency | 98.6% | ||||||||
| General Parameters | |||||||||
| Isolation Transformer | None | ||||||||
| Protection Degree | IP20 | ||||||||
| Operating Temperature [°C] | -30~+55 | ||||||||
| Relative Humidity | 0~95%, Non-condensing | ||||||||
| Cooling Method | Smart Air Cooling | ||||||||
| Max. Altitude [m] | 4000 (>2000m Derating required) | ||||||||
| Weight [kg] | 60 | ||||||||
| Dimensions (W x H x D) | 520×220×680 | ||||||||
| Communication Parameters | |||||||||
| Communication Interface | RS485 | ||||||||
| Communication Protocol | Modbus RTU | ||||||||
| EMS Integration | Yes | ||||||||
