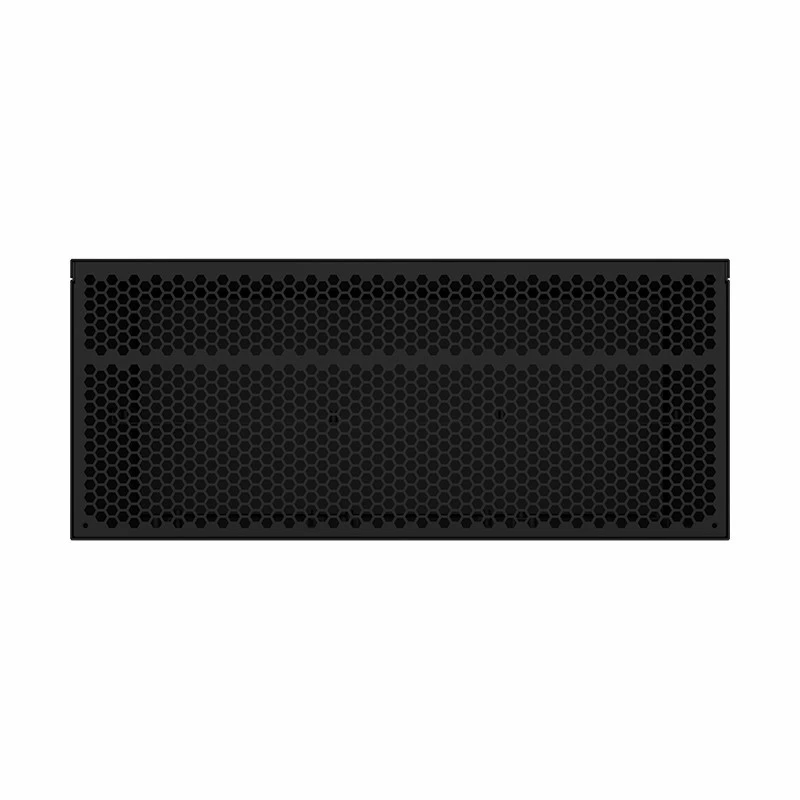

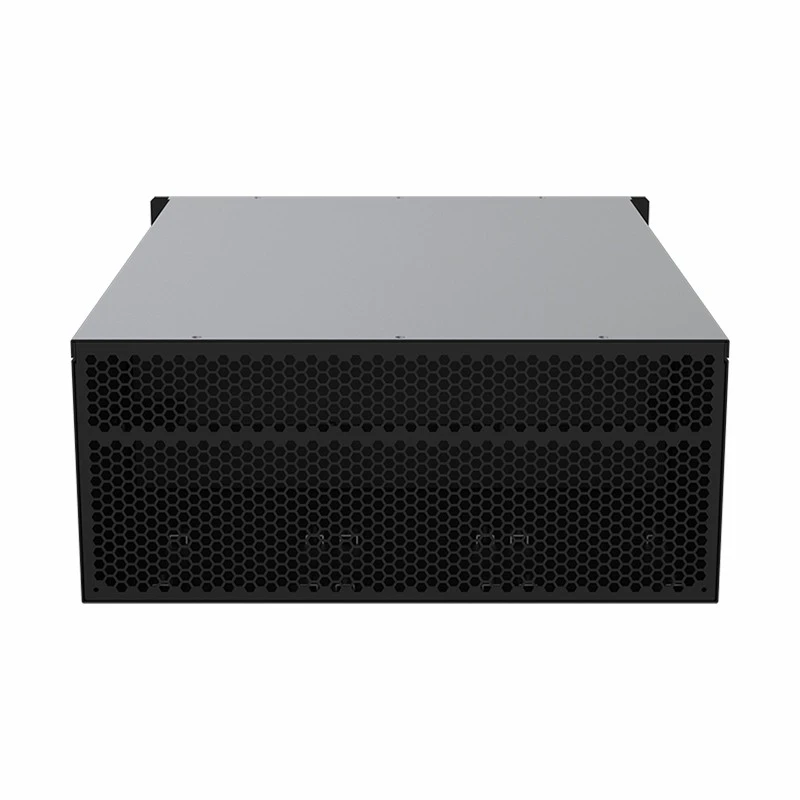

The LEG-125K-TL-P is an innovative energy storage PCS that brings a new level of performance and functionality to the market. It is specifically designed to be highly compatible with multiple battery types, providing users with the flexibility to choose the most appropriate energy storage solution for their specific applications. Whether it's for a residential solar power system or a small commercial energy storage project, this PCS can adapt to different battery chemistries.
The protection functions integrated into the LEG-125K-TL-P are comprehensive and reliable. They ensure the long-term stability and safety of the PCS, protecting it from various electrical faults and environmental factors. This includes features like island protection, which prevents the PCS from operating independently when the grid is down, and surge protection to safeguard against power spikes.
The modular design supports expansion, allowing users to increase the capacity of their energy storage system as their needs evolve. Optional features like anti-backflow and on-grid/off-grid switching give users more control over their power system. With a three-level topology achieving 99.0% efficiency, it is a highly efficient power solution.
|
Model NO. |
LEG-125K-TL-P |
|
DC Side |
|
|
DC Voltage Range [V] |
650~950 |
|
Number of Input Channels |
1 |
|
Supported Battery Types |
Lithium battery, lead-carbon, lead-acid |
|
AC Side (Grid-Connected) |
|
|
Rated Power [W] |
125000 |
|
Maximum Power [VA] |
138000 |
|
Maximum Output Current [A] |
198 |
|
Rated Grid Voltage [V] |
3/N/PE, 230/400 |
|
Rated Grid Frequency [Hz] |
50/60 (±5%) |
|
Total Current Waveform Distortion Rate |
<3% (Rated Power) |
|
DC Component |
<0.5% In |
|
AC Side (Off-Grid) |
|
|
Rated Output Power [W] |
125000 |
|
Maximum Output Power [VA] |
138000 |
|
Overload Capacity |
110% Long-Term Operating |
|
Rated Output Voltage [V] |
3/N/PE, 230/400 |
|
Rated Frequency [Hz] |
50/60 |
|
AC Voltage Distortion Rate [%] |
<3% (Linear Load) |
|
With Unbalanced Load Capacity [%] |
100.0% |
|
Efficiency |
|
|
Maximum Efficiency [%] |
98% |
|
General Parameters |
|
|
With Protection Function |
DC reverse connection protection, AC short circuit protection, grid monitoring, island protection, surge protection |
|
Isolation Transformer |
No |
|
Protection Level |
IP20 |
|
Cooling Method |
Intelligent Air Cooling |
|
Relative Humidity |
≤95% (No Condensation) |
|
Operating Temperature [°C] |
-30~+55 |
|
Altitude [m] |
4000 (>3000 Derating Required) |
|
Display Mode |
Touch Screen/External |
|
Dispatch Communication Method |
Ethernet, RS485 |
|
BMS Communication |
RS485, CAN |
|
Communication Protocol |
MODBUS-RTU/TCP |
|
Reference Weight [kg] |
86 |
|
Reference Size (WDH) [mm] |
720640270 |
