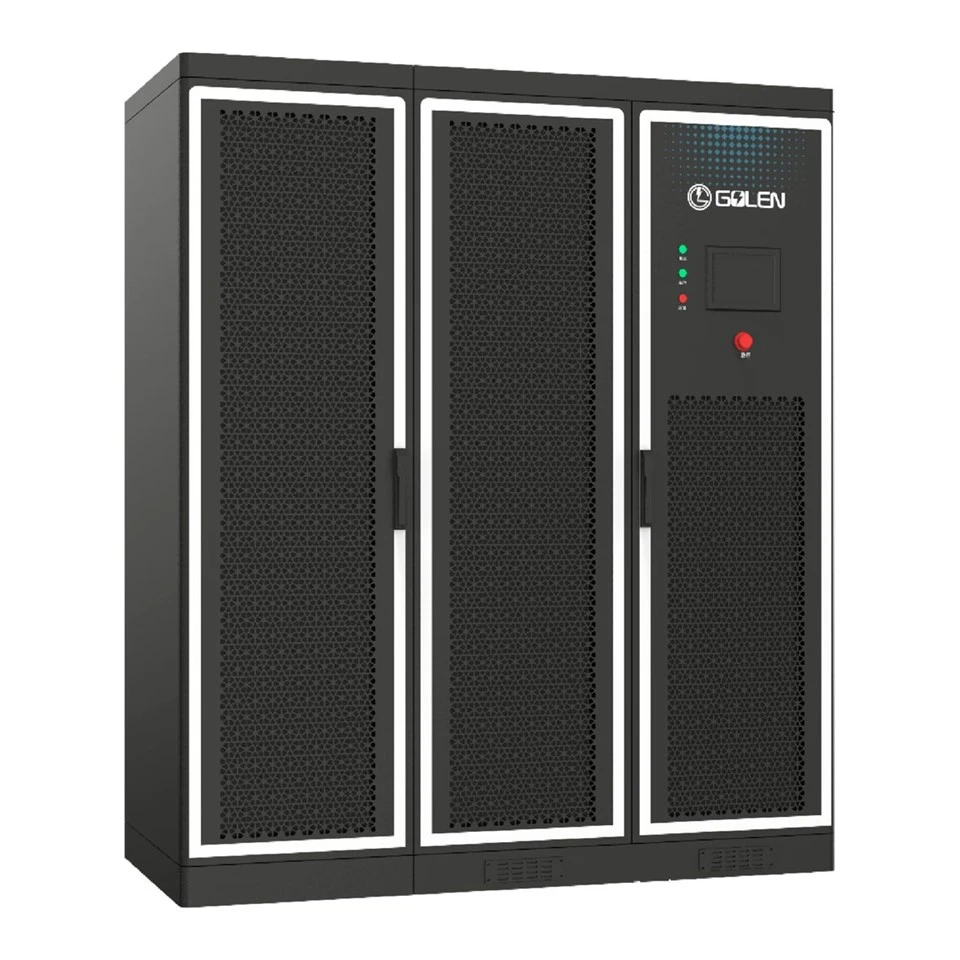

The LEI - 250K/500K - TT hybrid inverter serves as the core hub and intelligent control center of PV-storage microgrids. Its primary role is to coordinate and manage multiple distributed energy resources, including photovoltaic generation, energy storage systems, diesel generators, and local loads within a defined network, ensuring autonomous, stable, and efficient microgrid operation.
By integrating PV generation, battery storage, and grid interaction into a single platform, the LEI - 250K/500K - TT enables seamless energy flow control and intelligent dispatch under both grid-connected and islanded conditions. It dynamically balances supply and demand, optimizes renewable energy utilization, and maintains power stability even under fluctuating loads or grid disturbances.
Designed for complex energy scenarios, the inverter provides fast mode switching, high operational reliability, and strong adaptability, making it an ideal solution for building smart microgrids in commercial, industrial, remote, and grid-constrained environments.
The LEI - 250K/500K - TT features a cutting-edge power frequency topology, designed to optimize power conversion efficiency across a wide range of operating conditions. This advanced design ensures seamless integration with various power sources, allowing for smooth transitions between grid-connected, off-grid, and hybrid power systems. By minimizing power losses during conversion, the power frequency topology enables the LEI - 250K/500K - TT to deliver maximum power output while maintaining stable voltage and frequency levels. This not only reduces operational costs but also enhances the overall performance of the power system, making it an ideal choice for energy-intensive applications.
| Model | LEI-250K-TT | LEI-500K-TT |
| PV Parameters | ||
| Max. PV Input Voltage [V] | 880 | |
| Max. PV Power [kW] | 300/360 | 600/660/720 |
| No. of MPPTs | 5/6 | 10/11/12 |
| MPPT Voltage Range [V] | 250~850 | |
| Max. Input Current per MPPT [A] | 150 | |
| Battery Parameters | ||
| Max. DC Voltage [V] | 880 | |
| DC Voltage Range [V] | 600~880 | |
| Max. Charge Power [kW] | 300/360 | 600/660/720 |
| AC Parameters (On Grid) | ||
| Rated Output Power [kW] | 250 | 500 |
| Max. Output Power [kVA] | 275 | 550 |
| Max. Output Current [A] | 397 | 793 |
| Rated Grid Voltage [V] | 3W/N/PE,230/400 | |
| Rated Grid Frequency [Hz] | 50/60 | |
| Grid Frequency Range [Hz] | 47.5~52.5 | |
| Power Factor | 1 (0.9 leading to 0.9 lagging) | |
| THDi | ≤3% (at rated power) | |
| AC Parameters (Off Grid) | ||
| Rated Output Power [kW] | 250 | 500 |
| Maximum Output Power [kVA] | 275 | 550 |
| Rated Output Voltage [V] | 400 | |
| Rated Output Frequency [Hz] | 50/60 | |
| THDi | ≤3% (Linear Load @ Rated Power) | |
| Unbalanced Load Capability | 100% | |
| Protections | ||
| DC Overvoltage Protection | Yes | |
| DC Short-circuit Protection | Yes | |
| AC Overvoltage Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Over-temperature Protection | Yes | |
| Efficiency | ||
| Max. Efficiency | 95% | 96% |
| General Parameters | ||
| Isolation Transformer | Yes | |
| Ingress Protection Rating | IP20 | |
| Operating Temperature [°C] | -30~+55 | |
| Relative Humidity | 0~95%,Non-condensing | |
| Cooling Method | Temperature-Controlled Forced Air Cooling | |
| Max. Altitude [m] | 4000(>3000 Derating) | |
| Display | Touch screen | |
| Communication Interface | RS485 / CAN / Ethernet | |
| Communication Protocol | Modbus-RTU / TCP | |
| Weight [kg] | 1900/1930 | 3100/3130/3160 |
| Dimensions (W×D×H) [mm] | 600*1000*2100+1200*800*2100 | (600*1000*2100)*2+1600*1050*2100 |
