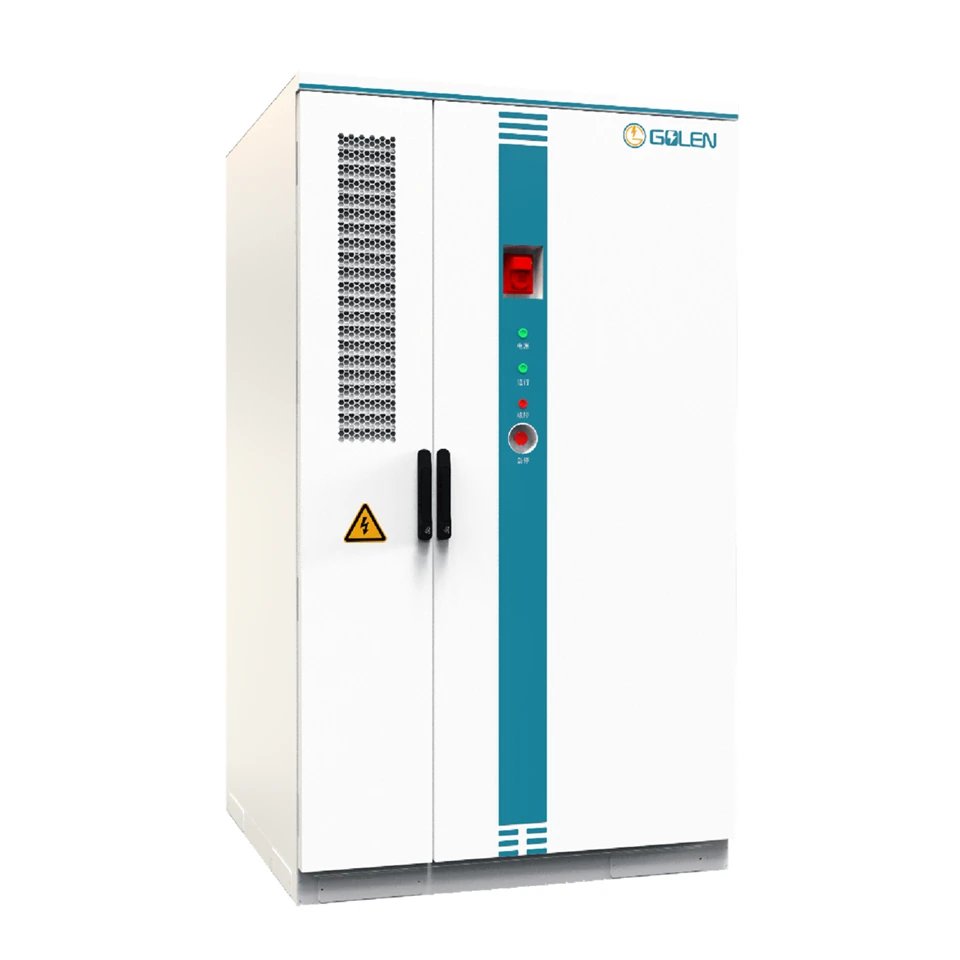

The LES-418L209 is a high-capacity energy storage cabinet engineered for large-scale commercial and industrial power applications. Delivering up to 418 kWh of energy in a single cabinet with 209 kW three-phase output, it offers a compact yet powerful solution for projects requiring high energy density and system efficiency.
The battery system adopts a PACK-level liquid-cooled runner architecture, enabling rapid heat dissipation and stable thermal control under continuous operation. It maintains reliable performance under fully unbalanced three-phase loads, ensuring power stability in complex electrical environments. To strengthen system safety, dual-layer fire protection is implemented at both PACK and cabinet levels, supported by intelligent dehumidification to actively mitigate condensation risks.
For simplified operation and lifecycle management, the LES-418L209 supports cloud-based monitoring, remote upgrades, and centralized O&M, reducing maintenance workload and on-site intervention. Its integrated cabinet design allows flexible system expansion while enabling fast installation and convenient servicing.
With high single-cabinet capacity, advanced thermal management, and intelligent digital control, the LES-418L209 is a robust and scalable energy storage solution for modern C&I and grid-support applications.
| Model | LES-418L209 |
| Battery Parameters | |
| Charge/Discharge Rate | 0.5C |
| Rated Voltage [V] | 1331.2 |
| Operating Voltage Range [V] | 1164.8-1497.6 |
| Rated Battery Cell Capacity [Ah] | 314 |
| Rated Capacity [kWh] | 417.996 |
| Configuration | 1P416S |
| AC Parameters (On Grid) | |
| Rated Output Power [kW] | 209 |
| Rated Output Current [KVA] | 175 |
| Rated Grid Voltage & Range [V] | 3W/PE,690(-15%~10%) |
| Rated Grid Frequency [Hz] | 50/60±5 |
| THDi | ≤3% (at rated power) |
| Power Factor | -1~1 |
| AC Parameters (Off Grid) | |
| Ingress Protection Rating | IP54 |
| Communication Interface | RS485, Ethernet |
| Communication Protocol | Modbus,IEC104 |
| Operating Temperature Range [°C] | -20~+50 |
| Cooling Method | Battery Compartment (Liquid-Cooled)/Electrical Compartment (Air-Cooled) |
| Fire Suppression System | Aerosol / Perfluorohexanone, Water Fire Protection |
| Max. Operating Altitude [m] | 4000 (>2000 Derating required) |
| Transportation Method | Integral transportation |
| Relative Humidity | 0~95%, Non-condensing |
| Weight [kg] | 3600 |
| Dimensions(W*D*H)[mm] | 1325*1375*2300 |
