The LES-261L130 is a high-capacity, liquid-cooled energy storage system designed for demanding commercial and industrial applications. With 261 kWh of energy capacity and 130 kW three-phase output, it delivers stable power for grid-connected and off-grid operation, even under 100% unbalanced load conditions.
A PACK-level liquid-cooled runner design ensures efficient heat dissipation and long-term battery performance. System safety is enhanced through dual-level fire protection at both PACK and cabinet levels, combined with intelligent dehumidification to prevent condensation in humid environments.
Supporting remote monitoring, cloud-based O&M, and online upgrades, the system simplifies operation throughout its lifecycle. Its modular, cabinet-integrated design enables flexible expansion and easy installation and maintenance, making the LES-261L130 a reliable and scalable solution for modern C&I energy storage projects.

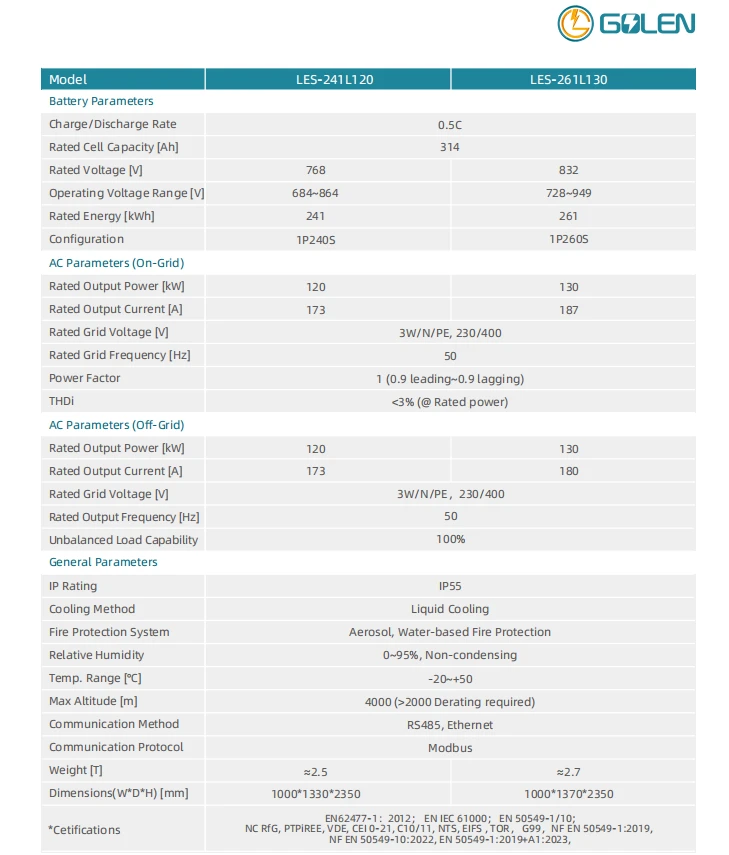

| Model | LES-261L130 |
| Battery Parameters | |
| Charge/Discharge Rate | 0.5C |
| Rated Voltage [V] | 832 |
| Operating Voltage Range [V] | 728~949 |
| Rated Battery Cell Capacity [Ah] | 314 |
| Rated Capacity [kWh] | 261.248 |
| Configuration | 1P260S |
| AC Parameters (On Grid) | |
| Rated Output Power [kW] | 130 |
| Rated Output Current [A] | 187 |
| Rated Grid Voltage & Range [V] | 3/N/PE,230/400(±10%) |
| Rated Grid Frequency [Hz] | 50 |
| Power Factor | 1 (0.9 leading to 0.9 lagging) |
| THDi | ≤3% (at rated power) |
| AC Parameters (Off Grid) | |
| Rated Output Power [kW] | 130 |
| Rated Output Current [A] | 187 |
| Rated Output Voltage [V] | 3/N/PE,230/400 |
| Rated Output Frequency [Hz] | 50 |
| THDu | < 3% (Linear Load @ Rated Power) |
| Unbalanced Load Capability | 100% |
| General Parameters | |
| Ingress Protection Rating | IP54 |
| Communication Interface | RS485, Ethernet |
| Communication Protocol | Modbus |
| Operating Temperature Range [°C] | -20~+50 |
| Cooling Method | Battery Compartment (Liquid-Cooled)/Electrical Compartment (Air-Cooled) |
| Fire Suppression System | Aerosol, Water Fire Protection |
| Max. Operating Altitude [m] | 4000 (>2000 Derating required) |
| Transportation Method | Integral transportation |
| Relative Humidity | 0~95%, Non-condensing |
| Weight [kg] | 2700 |
| Dimensions(W*D*H)[mm] | 1000×1370×2350 |
Our factory
FAQ
Q: Is there a process of testing the products in place before they are shipped out?
A: Absolutely. Prior to dispatching each consignment, we subject all products in the batch to comprehensive testing. This is done to confirm that every single item meets the established quality criteria and is fit for delivery. Our strict pre - shipment testing regime is an integral part of our commitment to providing you with products of the highest standard.
Q: Is there a minimum quantity per order that I need to be aware of for placing an order with your company?
A: Yes, there is a minimum order quantity requirement. Typically, the minimum order quantity is set at one unit per order. This standard helps us manage our production schedules and resources effectively while still being able to serve customers with smaller initial needs.
Q: What sorts of delivery methods do you offer for getting the products to the customers?
A: Sea freight is one of the shipping options we are able to provide for transporting your goods.
Q: Is it possible for us to pay a visit to your factory prior to placing an order?
A: Absolutely! We wholeheartedly welcome you to visit our factory. Establishing a face - to - face connection is an excellent way to initiate a strong and mutually beneficial business relationship. We believe that such a visit will provide you with valuable insights into our operations, production capabilities, and quality control processes, which are essential for building trust and confidence in our partnership.
Q: Is there a possibility for us to act as your agent?
A: Certainly! We're delighted to explore an agency partnership with you. Currently, we're running significant market - wide promotions. To get all the specific information regarding the agency terms and our promotional strategies, kindly reach out to our overseas manager. We're looking forward to starting this exciting collaboration and achieving great success together.
