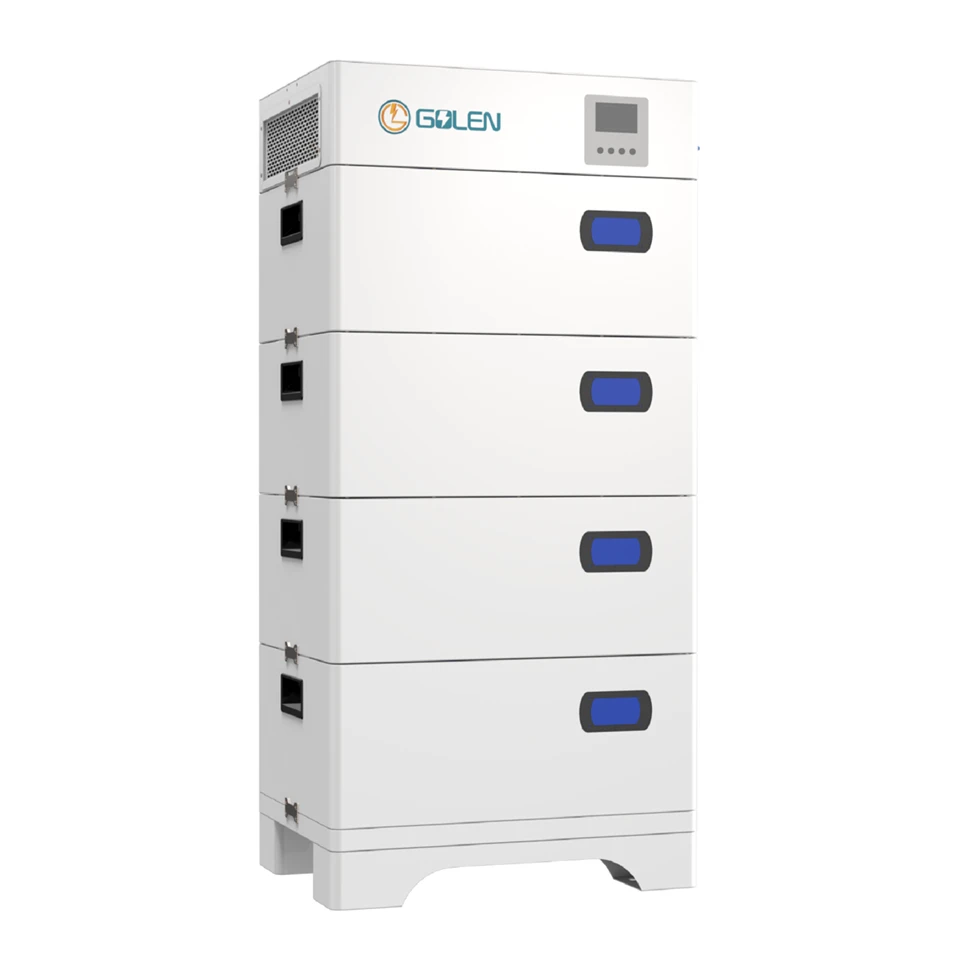

The LEB-5120-L4 is a high-performance stackable energy storage system designed for residential applications. With a nominal voltage of 51.2 V and a scalable capacity from 5.12 kWh to 20.48 kWh, it delivers reliable backup power and enhanced household energy security.
An advanced Battery Management System (BMS) continuously monitors and optimizes battery performance, providing comprehensive protection against overcharge, over-discharge, and temperature extremes to ensure maximum safety and long service life.
Featuring a modular and expandable design, the LEB-5120-L4 grows with your energy needs, making it an efficient and dependable solution for home backup power and energy independence.
| LEB-5120-L4 | |
| Model | LEB-5120-L4 |
| System Parameters | |
| Rated Output Power | 5000W/VA |
| Number of Battery Modules | 1~4 (Optional) |
| System Nominal Energy | 5.12~20.48kWh |
| Ingress Protection (IP) Rating | IP20 |
| Operating Temperature Range | -10°C ~50°C |
| Max. Operating Altitude | 4000m (>3000m derating) |
| Weight | 210kg |
| Dimensions (L x W x H) | 695X458X1020mm |
| Battery Parameters | |
| Rated Voltage | 51.2V |
| Energy Capacity | 5.12kwh*4 |
| Voltage Range | 44.8V~58.4V |
| Max. Charge/Discharge Current | 100A/100A |
| General Parameters | |
| Battery Type | LiFePO4 Battery |
| Communication Method | RS485 / CAN |
| Monitoring Parameters | System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
| Operating Temperature Range | Charge: 0~55°C / Discharge: -20~60°C |
| Operating Humidity | 5%~95% |
| Cycle Life | ≥2000@25±2°C,0.5C/0.5C, 80%EOL |
| Dimensions (L x W x H) | 695X458X200mm |
| Warranty | 3 Years |
| Certification | Battery Pack：UN38.3 Cell: IEC/EN 62619;UN38.3;UL1973 |
