The LEI-10K-TL hybrid inverter stands out as an impressive feat of engineering. It seamlessly integrates with a diverse array of battery systems, empowering users with the freedom to select their preferred energy storage solution. Built with robust safety features and exceptional resilience to varying conditions, it ensures dependable performance across multiple scenarios. Its broad DC input voltage range supports an extensive variety of power inputs, while the multi-channel PV MPPT design optimizes energy harvesting efficiency. In off-grid setups, it expertly handles uneven load distribution and delivers independent three-phase output with ease. The IP65-rated, wall-mounted enclosure provides superior protection against environmental factors. Boasting an efficiency of up to 98.0%, it exemplifies cutting-edge energy conservation. With flexible operating modes such as Self-use, Time-of-use, Timing, and Passive, it caters to individual user preferences. Additionally, its remote monitoring capabilities via PC and mobile devices enable effortless oversight of the energy system from any location.
|
Model |
LEI-10K-TL |
|
PV Input |
|
|
Max. Recommended PV Power [Wp] |
15000 |
|
Max. Input Voltage [V] |
1000 |
|
Start-up Voltage [V] |
200 |
|
MPPT Voltage Range [V] |
180-960 |
|
MPPT Working Voltage for Full Load [V] |
220-850 |
|
MPPT Input Current [A] |
50 (25/25) |
|
MPPT Number |
2/2 |
|
Battery |
|
|
Battery Type |
Lithium, Lead-acid |
|
Number of Battery Input |
2 |
|
Battery Voltage Range [V] |
180-800 |
|
Battery Voltage Range for Full Load [V] |
200-800 |
|
Max Charge/Discharge Current [A] |
50 (25/25) |
|
Communication |
CAN/RS485 |
|
Charging Strategy for Battery |
According to BMS Instructions/3 Stages (Lead-acid) |
|
AC Output (On Grid) |
|
|
Rated Output Power [VA] |
10000 |
|
Max. Output Power [VA] |
11000 |
|
Rated Output Voltage [Vac] |
3/N/PE, 220/380, 230/400 |
|
Grid Voltage Range [Vac] |
184-276 |
|
Max. Output Current [A] |
16 |
|
AC Output Frequency [Hz] |
50/60 (45-55/55-65) |
|
Power Factor |
1 (0.8 leading-0.8 lagging) |
|
THDi |
<3% (@rated power) |
|
Backup AC Output (EPS) |
|
|
Rated Output Power [VA] |
10000 |
|
Max. Output Power [VA] |
11000 60s, 15000 1s |
|
Max. Output Current [A] |
16 |
|
Rated Output Voltage [Vac] |
3/N/PE, 220/380, 230/400 |
|
Output Frequency [Hz] |
50/60 (±0.2%) |
|
THDu |
<3% (@linear load) |
|
Switch Time |
<20ms |
|
Efficiency |
|
|
Max. Efficiency |
98.2% |
|
General Data |
|
|
Protection |
DC Lightning Protection, AC Lightning Protection, PV Reverse Polarity Protection, Battery Reverse Polarity Protection, Insulation Resistance Detection, Leakage Current Detection, Anti-island Protection, Grounding Fault, Input Over/Under Voltage, Output Over/Under Voltage, Input/Output Overcurrent, Overheat Protection |
|
Ingress Protection |
IP65 |
|
Cooling Method |
Smart fan cooling |
|
Relative Humidity |
0-95% |
|
Temp. Range [°C] |
-30~+60 |
|
Altitude [m] |
4000 (>2000 derating) |
|
Noise [dB] |
<45 |
|
Standby Self Consumption [W] |
<15 |
|
Display |
LCD |
|
Communication |
RS485 (Standard), Wi-Fi (Option) |
|
BMS Communication |
RS485/CAN |
|
Weight [kg] |
32 |
|
Dimension (WDH) [mm] |
586×270×470 |
|
Installation Style |
Wall Mounted |

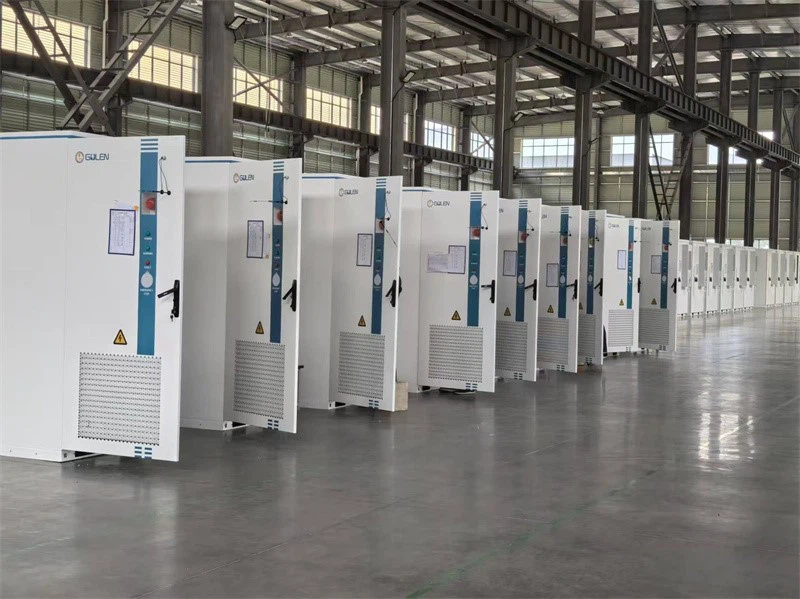

Our factory
FAQ
Q: Are you a trading firm or a manufacturing entity?
A: We are a professional manufacturing enterprise with a focus on the R & D, production, and marketing of PCS, hybrid inverters, energy storage battery packs, and energy storage systems. We directly engage in product trading with our customers.
Q: Do you offer OEM and ODM services?
A: Yes, we do. Both OEM and ODM options are viable. We have the flexibility to customize aspects like materials, colors, and styles. As for the minimum order quantity, we'll determine and suggest an appropriate number following in - depth discussions.
Q: Is it possible for us to use our own brand logo?
A: Definitely. We are equipped to print your personalized logo in strict accordance with your specifications.
Q: What shipping methods are at your disposal?
A: Currently, we are able to arrange sea freight for shipping purposes.
Q: Can we visit your factory before placing an order?
A: Absolutely! Your visit is highly encouraged. Establishing a face - to - face connection is an excellent way to build a strong and prosperous business relationship.
