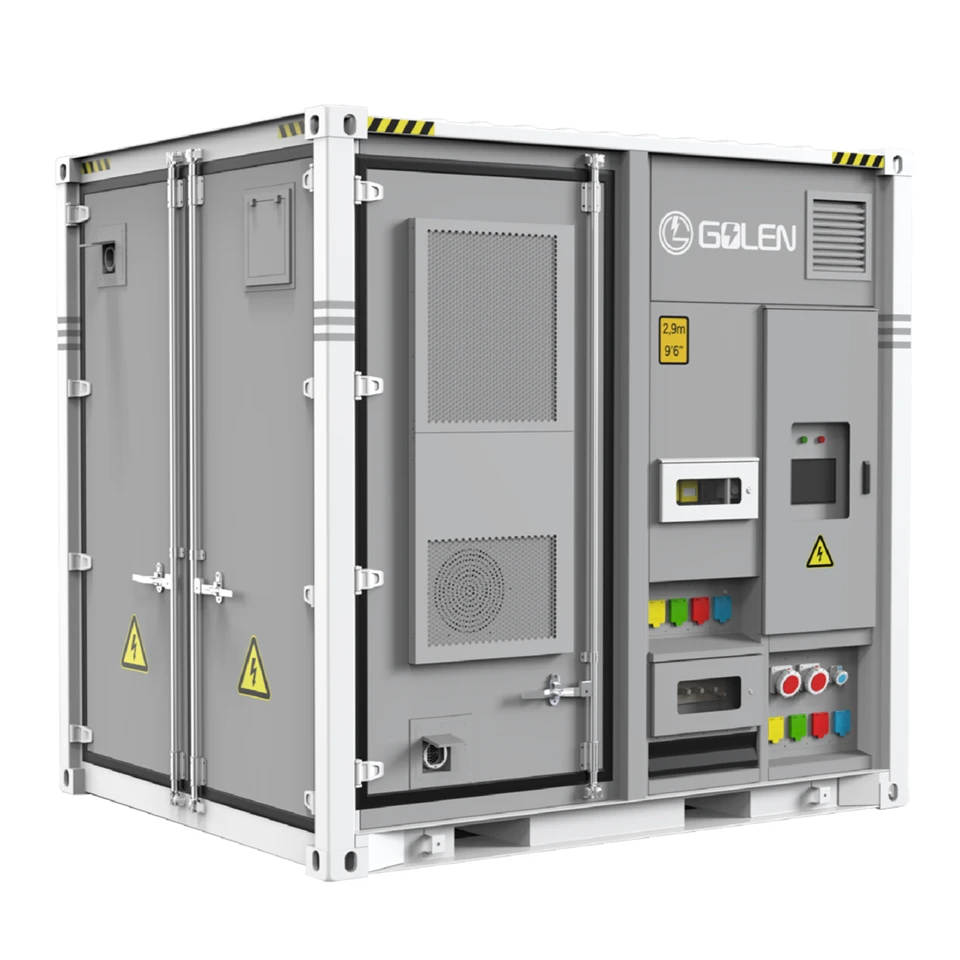

Designed for rapid deployment and long-term reliability, the 10FT Energy Storage Container delivers a compact yet highly adaptable energy storage platform. Its standardized design streamlines system integration, transportation, and on-site commissioning, while the modular framework allows capacity to be expanded step by step to meet evolving project demands-from decentralized renewable systems to large-scale industrial power applications.
The system is built around high-grade lithium iron phosphate (LFP) cells supplied by leading manufacturers, providing stable output, enhanced safety, and an extended operational lifespan. A centralized monitoring architecture continuously supervises system status, enabling precise energy control and consistent performance under varying operating conditions.
Supporting a wide range of operating scenarios, the containerized ESS is well-suited for grid-connected, islanded, and hybrid configurations. Intelligent thermal management and automatic cell equalization work together to improve efficiency and maintain long-term system health. Through remote supervision and control, operators can manage performance in real time, while optional interfaces for backup generators and grid coordination add further flexibility for complex energy environments.
| Model | LES-H10-723L250C |
| Battery Parameters | |
| Charge/Discharge Rate | 0.5C |
| Rated Voltage [V] | 768 |
| Operating Voltage Range [V] | 672~876 |
| Rated Battery Cell Capacity [Ah] | 314 |
| Rated Energy [kWh] | 723.456 |
| Configuration | 3P240S |
| AC Parameters (On Grid) | |
| Rated Output Power [kW] | 250 |
| Rated Output Current [A] | 360 |
| Rated Grid Voltage & Range [V] | 3W/N/PE,230/400 |
| Rated Grid Frequency [Hz] | 50/60 |
| Power Factor | 1 (0.9 leading to 0.9 lagging) |
| THDi | ≤3% (at rated power) |
| AC Parameters (Off Grid) | |
| Rated Output Power [kW] | 250 |
| Rated Output Current [A] | 360 |
| Rated Output Voltage [V] | 3W/N/PE,230/400 |
| Rated Output Frequency [Hz] | 50/60 |
| THDu | < 3% (Linear Load @ Rated Power) |
| Unbalanced Load Capability | 100% |
| General Parameters | |
| Ingress Protection Rating | IP54 |
| Communication Interface | RS485, Ethernet |
| Communication Protocol | Modbus-RTU,Modbus-TCP |
| Operating Temperature Range [°C] | -20~+50 |
| Cooling Method | Battery Compartment: Liquid-Cooled; Electrical Compartment: Air-Cooled |
| Fire Suppression System | Cabinet-level Fire Suppression (Perfluoro/Aerosol) + Water Fire Protection |
| Max. Operating Altitude [m] | 4000 (>2000 Derating required) |
| Transportation Method | Integral transportation |
| Relative Humidity | 0~95%, Non-condensing |
| Weight [kg] | <9.8 |
| Dimensions(W*D*H)[mm] | 2991×2438×2896 |
Our factory
FAQ
Q: Is there a process of testing the products in place before they are shipped out?
A: Absolutely. Prior to dispatching each consignment, we subject all products in the batch to comprehensive testing. This is done to confirm that every single item meets the established quality criteria and is fit for delivery. Our strict pre - shipment testing regime is an integral part of our commitment to providing you with products of the highest standard.
Q: Is there a minimum quantity per order that I need to be aware of for placing an order with your company?
A: Yes, there is a minimum order quantity requirement. Typically, the minimum order quantity is set at one unit per order. This standard helps us manage our production schedules and resources effectively while still being able to serve customers with smaller initial needs.
Q: What sorts of delivery methods do you offer for getting the products to the customers?
A: Sea freight is one of the shipping options we are able to provide for transporting your goods.
Q: Is it possible for us to pay a visit to your factory prior to placing an order?
A: Absolutely! We wholeheartedly welcome you to visit our factory. Establishing a face - to - face connection is an excellent way to initiate a strong and mutually beneficial business relationship. We believe that such a visit will provide you with valuable insights into our operations, production capabilities, and quality control processes, which are essential for building trust and confidence in our partnership.
Q: Is there a possibility for us to act as your agent?
A: Certainly! We're delighted to explore an agency partnership with you. Currently, we're running significant market - wide promotions. To get all the specific information regarding the agency terms and our promotional strategies, kindly reach out to our overseas manager. We're looking forward to starting this exciting collaboration and achieving great success together.
